Axis ONE

Axis One

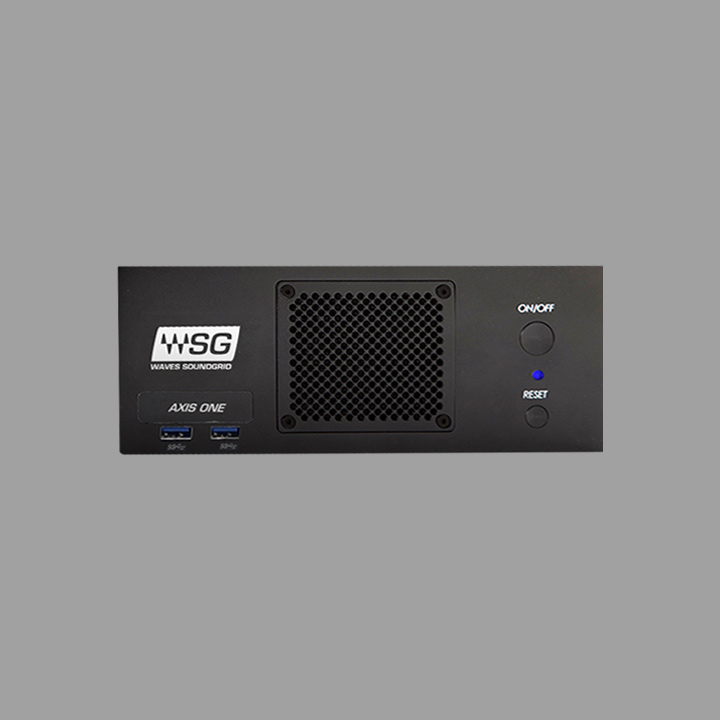

Ένας υπολογιστής προσαρμοσμένος και βελτιστοποιημένος για τις εφαρμογές της Waves LV1 και Multirack. Σε rack 2U, το οποίο είναι ανθεκτικο στο δρόμο, το Axis One είναι μια αξιόπιστη λύση για ζωντανό ήχο, καθως και στούντιο. Το Axis One έχει σχεδιαστεί από την Waves για να είναι σταθερό σε απαιτητικές συνθήκες. Μέσω προσεκτικής επιλογής εξαρτημάτων και εκτεταμένων αυστηρών δοκιμών, έχει βελτιστοποιηθεί ώστε να ανταποκρίνεται στις ανάγκες των ηχοληπτών. Εχει σχεδιαστεί για να βοηθάει οποιονδήποτε ηχολήπτη να δημιουργήσει τον ήχο που θέλει αξιόπιστα, οπουδήποτε.

  • Computer optimized to run Waves software applications
  • Intel® i5 8500 Processor
  • 16GB DDR4 RAM
  • 256GB SSD Internal storage
  • Windows 10

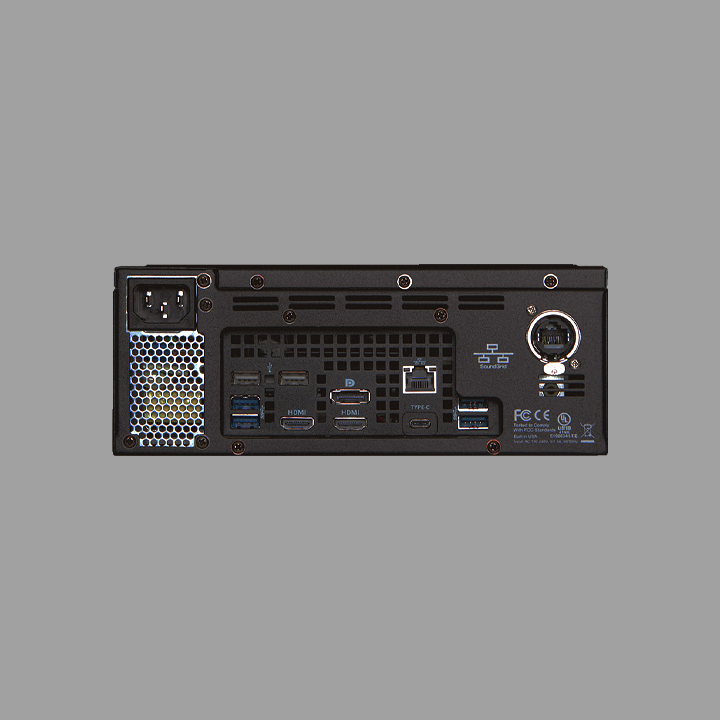

  • 2 HDMI ports, 1 display port
  • 1 SoundGrid port (EtherCon connector), 1 Ethernet port (RJ45 connector)
  • 8 USB2/USB3 ports, 1 USB-C port
  • Rack-mountable case, 2U half-rack

Weight and Dimensions:
Length: 25.2 cm (25.6 cm with rear Neutrik connector)
Height: 8.47 cm (8.61 cm with front faceplate 8.6 cm with top cover rear bulge)
Depth: 22 cm
Device Weight: 3.22 kg


  • It’s highly advised to avoid having an active Wi-Fi connection during a show. Make sure you switch Wi-Fi off during performances.
  • In order to connect Axis One to Wi-Fi, plug it into a Wi-Fi router via the Ethernet port, or use a USB-Wi-Fi dongle.
Software and Updates
  • Comes pre-installed with Windows 10.
  • Comes pre-installed with Waves Central v10, eMotion LV1 v10, and all Waves v10 plugins. (Please note that in order to activate and use any of the pre-installed plugins, you would need to purchase their licenses).
  • All Waves software updates, software installation and licensing are managed by Waves Central. (Please note that this applies only to Waves software updates, not to updates of any other software on the computer).
    Waves Instruments sample libraries are not pre-installed.
  • Windows security updates are deployed monthly by Microsoft and are required for keeping a secure system. An update installtion can be delayed by the user up to 30 days from its deployment. Other Windows updates are disabled by default.
Warranty and Modifications
  • Axis One is covered under a 1-year warranty.
  • Opening the Axis One casing or modifying the hardware in any way will void warranty.
USB and Display Adapters
  • Features USB2, USB3 and USB-C ports.
  • USB to Ethernet adapters are not supported.
  • Supports up to 3 displays using the built-in HDMI and DisplayPort ports. Using display adapters is not supported.
Axis One can be mounted on a rack in one of two ways:
  • Using rack ears (sold separately)
  • Using a rack-shelf (sold separately) that allows mounting two Axis One units side by side, or an Axis One and a type-C SoundGrid server side by side.
Other Notes
  • MultiRack v9 is supported with Waves v10 plugins only. It is not pre-installed.
  • Tracks Live is not officially supported with Axis one.
  • SoundGrid Studio v9 is not officially supported with Axis One.
  • Third-party audio interfaces were not tested and are not officially supported with Axis One.
  • Axis One only supports SoundGrid I/O devices qualified for use with eMotion LV1.
